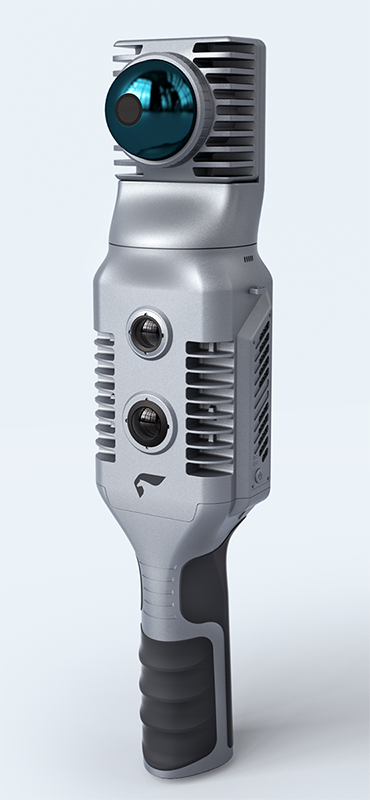

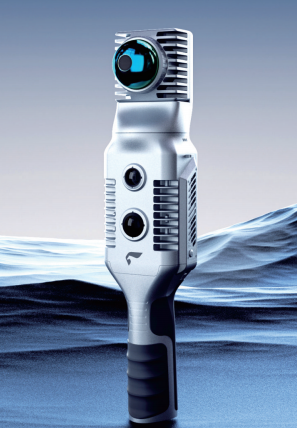

Handheld 3D Lidar Scanner
- Item No. : SLAM XS07
Main Features:
-Panoramic Laser FOV
-High Precision Surveying & Mapping
-Real-time mapping
-Visual Camera
-Texture Camera
-Abundant Extension
-Software
*SLAM GO POST
*SLAM GO
- Inquiry now
Technical Specifications:
|
THE OVERALL PARAMETERS |
Laser field angle |
270掳 * 360掳 |
|
Camera field angle |
200掳(horization) *100掳(verticals) |
|
|
Relative accuracy |
2cm |
|
|
Absolute accuracy |
5cm |
|
|
Storage capacity |
Storage capacity |
|
|
The power Supply |
Internal replaceable lithium battery, external supplies power |
|
|
External Power Voltage |
20-30V |
|
|
Internal battery |
3000mAh脳4 |
|
|
Continued consumption of internal battery |
2.5 hour |
|
|
Consumption |
24W |
|
|
Protection Grade |
IP54 |
|
|
Working temperature |
-10掳C~ +50掳C |
|
|
Working humidity |
< 85%RH |
|
|
Weight |
1588g (without battery) |
|
|
Size |
372*163*106mm (without base ) |
|
|
Sensor parameter |
Laser level |
Class 1 |
|
Laser channel |
16 |
|
|
Measuring Distance |
70m |
|
|
Frequency |
300kpts/s |
|
|
Echo Intensity |
8 bits |
|
|
Number of camera |
3 |
|
|
Camera resolution |
12 Million Pixels |
|
|
NFC |
Support |
